The rail construction on Honu paddleboards is the most complex, time consuming — and reliable — in the industry. We didn't pioneer the technique, but we've taken it further than anyone else.
The process
01
Inner rail joint
Drop-stitch panels joined at the inner seam to create board rocker
02
Heat & pressure
Controlled heat and pressure fuse the 20mm strip over the inner rail seam line.
03
Outer rail construction
After a 48 hr leak test, carbon panels and outer rail can be bonded.
04
Lifetime seal
No failure pathway. The weld extends the board's life, while the layers increase rigidity.
Pure craftsmanship
Two operators.
No second chances.
Rail welding requires two highly skilled operators, each with years of hands-on experience, working in complete unison. Once the weld begins, it cannot stop. There is no pause, no correction, no going back. A single mistake in heat, pressure, speed, or alignment means the board becomes a reject. This is precision work built on years of craft, and it's exactly why you won't find this construction on cheaper boards.
2 operators per board
No mid-process stops
Years of training required
Zero tolerance for error
The key is what's happening at a molecular level. When heat and pressure are applied to PVC over PVC, the materials don't just bond, they fuse. There's no adhesive layer to fail, no glue to degrade under UV or saltwater exposure. The bond is structural, the same material all the way through.
A permanent mechanical bond — not a seam, not a glue line. The weld is the rail.
Honu vs. the industry
Standard construction
Glued or taped rails rely on adhesive integrity. Over time, UV, heat cycling, and flex fatigue cause delamination — the leading cause of leaks in inferior boards.
Honu heat weld
A 20mm PVC strip is heat & pressure welded over the inner rail joint by two skilled operators in a single, uninterrupted pass. No adhesive — no weak point.
Other manufacturers, including Starboard with their own welded rail technology, have explored heat-bonded seams. Honu's approach differs in geometry, strip width, operator technique, and weld profile. Our cross-section is unique to us. The result is a board that outlasts conventional constructions by years of hard use.
Heat+Pressure Rails - Why, What & How
The rail that
never fails
How Honu perfected the industry's most complex and time-consuming board construction

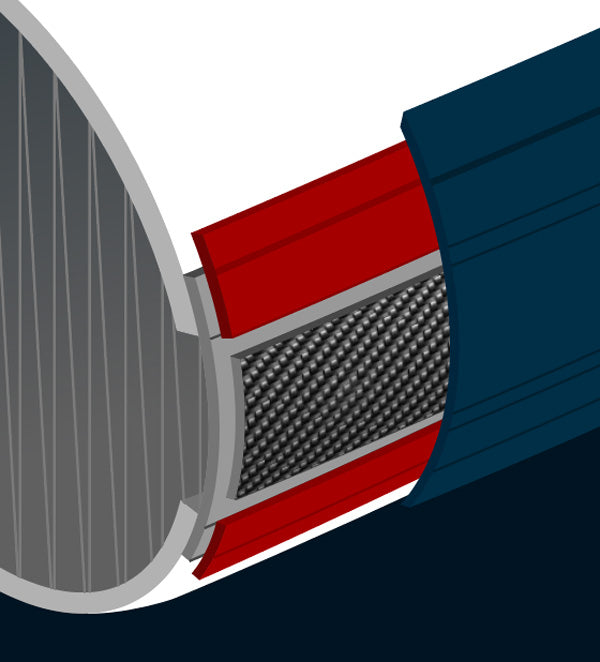

Our rail cross-section
The rail construction on Honu paddleboards is the most complex, time consuming — and reliable — in the industry. We didn't pioneer the technique, but we've taken it further than anyone else.
Two operators.
No second chances.
Rail welding requires two highly skilled operators, each with years of hands-on experience, working in complete unison. Once the weld begins, it cannot stop. There is no pause, no correction, no going back. A single mistake in heat, pressure, speed, or alignment means the board becomes a reject. This is precision work built on years of craft, and it's exactly why you won't find this construction on cheaper boards.
The key is what's happening at a molecular level. When heat and pressure are applied to PVC over PVC, the materials don't just bond, they fuse. There's no adhesive layer to fail, no glue to degrade under UV or saltwater exposure. The bond is structural, the same material all the way through.
A permanent mechanical bond — not a seam, not a glue line. The weld is the rail.
Other manufacturers, including Starboard with their own welded rail technology, have explored heat-bonded seams. Honu's approach differs in geometry, strip width, operator technique, and weld profile. Our cross-section is unique to us. The result is a board that outlasts conventional constructions by years of hard use.
